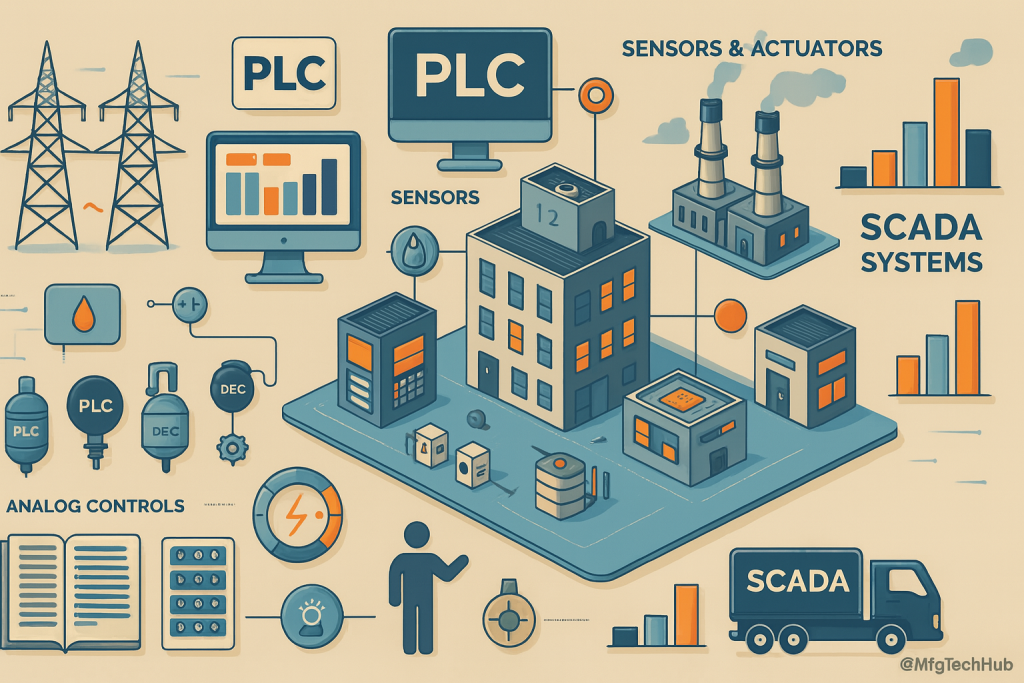

Infographic visualizing how PLCs, sensors, and SCADA systems connect in industrial automation environments, including factory and data flow elements.

1. What is a PLC in SCADA?

A Programmable Logic Controller (PLC) is a ruggedized industrial computer that plays a crucial role in SCADA systems. It executes real-time control by processing input signals from sensors, switches, and other field devices, then sending commands to actuators and machines.

🔹 Example: In a water treatment plant, a PLC controls pumps and valves based on tank level sensors to maintain optimal water flow.

2. Key Functions of PLCs in SCADA

A. Data Acquisition and Processing

• 📊 Reads signals from field sensors (e.g., temperature, pressure, flow).
• 🔄 Converts analog signals into digital data for SCADA processing.
• 📡 Communicates with SCADA systems via Modbus, Ethernet/IP, OPC UA.

🔹 Example: In an oil refinery, a PLC reads flow rates from pipelines and sends data to SCADA, triggering alarms for pressure anomalies.

B. Logic Execution and Process Control

• 🕹️ Executes control logic based on pre-programmed instructions.
• ⚡ Automates industrial processes, reducing human intervention.
• 🔄 Optimizes efficiency by controlling motors, valves, and actuators.

🔹 Example: In an automotive factory, a PLC controls robotic arms in assembly lines to ensure precise welding and material handling.

C. Alarm and Event Management

• 🚨 Monitors process variables for deviations.
• 📢 Triggers alarms for faults, safety breaches, or system failures.
• 📜 Logs historical events for troubleshooting and compliance.

🔹 Example: A PLC monitors gas pipeline pressure and activates an emergency shut-off valve if levels exceed safety limits.

D. Communication with SCADA Systems

• 🔗 Acts as a bridge between field devices and SCADA software.
• 📡 Uses industrial protocols (Modbus, Profibus, DNP3) for seamless integration.
• 🌍 Supports remote monitoring and control over the network.

🔹 Example: In smart grids, PLCs transmit voltage and load data from substations to SCADA for real-time grid balancing.

3. PLCs vs. RTUs: Key Differences

4. Applications of PLCs in SCADA

A. Manufacturing Automation

• 🏭 Controls robotic arms, conveyors, and production lines.
• 📊 Monitors product quality using sensor feedback.
• 💡 Optimizes power usage in high-speed operations.

🔹 Example: A PLC in a bottling plant synchronizes conveyors to fill, cap, and label bottles accurately.

B. Energy and Utilities

• ⚡ Monitors and controls power grids, substations, and turbines.
• 🔍 Optimizes energy distribution based on real-time demand.
• 🛡️ Ensures grid stability with load balancing automation.

🔹 Example: A PLC in a wind farm adjusts turbine blades to maximize power generation based on wind speed.

C. Oil and Gas Industry

• 🛢️ Regulates pipeline flow, pressure, and storage tanks.
• ⛽ Automates drilling operations for safety and efficiency.
• 🚨 Triggers emergency shutdowns in case of system failure.

🔹 Example: A PLC at an offshore rig controls drilling equipment while continuously monitoring pressure levels to prevent blowouts.

D. Water and Wastewater Management

• 💦 Monitors tank levels, pump operations, and chemical dosing.
• 🔄 Optimizes water distribution by adjusting pump speeds.
• 🚨 Detects leaks or contamination and triggers alarms.

🔹 Example: A PLC in a wastewater treatment plant adjusts aeration levels based on oxygen sensor data to maintain water quality.

5. Modern Trends in PLC Technology

• 🚀 Edge Computing with PLCs - Process data locally before sending it to SCADA.
• 📡 Cloud-Connected PLCs - Remote access and real-time analytics via cloud platforms.
• 🛡️ Cybersecurity Integration - Enhanced firewall protection for PLC networks.
• 🤖 AI and Machine Learning - Predictive maintenance and fault detection automation.
• 📱 Mobile-Based Monitoring - PLCs support smartphone integration for mobile control.

🔹 Example: In smart manufacturing, AI-enabled PLCs analyze production data in real-time, predict failures, and recommend process improvements.

6. Best Practices for PLC Deployment in SCADA

• 🏷️ Standardize tags & alarm priorities: Use consistent tag naming and alarm classes across sites so HMIs and historians stay searchable and uniform.
• ⚡ Design for headroom & redundancy: Select I/O with expansion room and size power supplies with redundancy to ride through transients and component failures.
• 🧪 Validate logic before commissioning: Use simulation or a digital twin to test control sequences and interlocks, reducing startup surprises and downtime.
• 🌐 Segment networks & secure access: Implement cell/area zones with secure gateways; never expose PLCs directly to the internet.
• ⏱️ Enable precise time sync: Use NTP or PTP so events, alarms, and historian entries are time-aligned for audits and root-cause analysis.
• 💾 Control versions & backups: Track firmware, back up programs routinely, and enforce change control to meet compliance and speed recovery.
• 🎓 Train operators & maintenance: Teach safe forced-I/O, alarm shelving rules, and recovery steps to protect people, assets, and uptime.
• 🧰 Harden the hardware: Use rugged enclosures, protect against dust, moisture, and vibration, and consider conformal coating where environments demand it.
• 🔒 Adopt IEC 62443 practices: Define roles, enforce strong passwords, set patch cadence, and drill incident response to elevate cybersecurity.

Programmable Logic Controllers (PLCs) are the brain of industrial automation, ensuring real-time control, process optimization, and seamless integration with SCADA systems. With advancements in IoT, cloud computing, and AI, PLCs are becoming smarter, faster, and more secure, playing a critical role in Industry 4.0 and smart automation.
