Mass Flowmeters (Coriolis, Thermal) and Applications
Why Flow and Level Measurement Matters
In the world of industrial automation and process control, flow and level measurement are fundamental. Whether it’s monitoring water usage in a treatment plant, dosing ingredients in food processing, or managing oil flow in pipelines, accurate measurement ensures safety, efficiency, and product quality. Using the right flow measurement instruments helps companies control processes, reduce waste, and comply with regulations.
Among the most reliable technologies for precise measurement are mass flowmeters—in particular, Coriolis flowmeters and thermal mass flowmeters. Let’s explore how these industrial flow sensors work, their benefits, and where they are commonly used.
What Are Mass Flowmeters?
Mass flowmeters are instruments designed to directly measure the mass flow rate of a fluid (liquid or gas) as it passes through a pipe. Unlike traditional flowmeters that measure only the volume, mass flowmeters provide more accurate and consistent readings, regardless of changes in temperature, pressure, or fluid composition.
The two most popular types are:
- Coriolis Flowmeter
- Thermal Mass Flowmeter
Each uses a different principle to measure flow, and both have specific strengths in industrial applications.
Coriolis Flowmeters: Principles and Applications
How Does a Coriolis Flowmeter Work?
A Coriolis flowmeter works using the Coriolis effect, which is the force that causes moving fluids to deflect when passing through vibrating tubes. Here’s a simple breakdown:
- The device has one or more tubes that vibrate at a specific frequency.
- When fluid flows through these tubes, the mass of the moving fluid causes a slight twist or deflection in the tubes (the Coriolis effect).
- Sensors detect the amount of tube deflection, which is directly related to the mass flow rate.
Practical Example
Imagine a dairy factory bottling milk. The density and flow of the milk can change with temperature, but the Coriolis flowmeter accurately measures the true mass of milk flowing into each bottle, ensuring every product is consistent.
Advantages of Coriolis Flowmeters
- High Accuracy: Measures mass flow directly, unaffected by changes in temperature or pressure.
- Versatile: Works with a wide range of liquids and slurries, even those with bubbles or suspended solids.
- Direct Density Measurement: Can also provide real-time density and temperature data.
Limitations
- Cost: Typically more expensive than other flow sensors.
- Installation: Requires careful mounting to minimize vibration interference.
- Pipe Size: Not ideal for very large pipe diameters.
Thermal Mass Flowmeters: Principles and Applications
How Does a Thermal Mass Flowmeter Work?
A thermal mass flowmeter operates on the principle of heat transfer. It uses two temperature sensors and a heating element:
- The heater warms a part of the fluid stream.
- As fluid passes, it carries away some of the heat.
- The flowmeter calculates the mass flow rate based on how much heat is lost.
This method is especially useful for measuring gases.
Practical Example
In a building’s HVAC system, a thermal mass flowmeter can track the amount of natural gas used for heating, ensuring efficiency and accurate billing.
Advantages of Thermal Mass Flowmeters
- No Moving Parts: Minimal maintenance required.
- Great for Gases: Ideal for measuring low-density gases or air.
- Wide Range: Can detect both very low and high flow rates.
Limitations
- Not Suitable for All Liquids: Works best with clean, dry gases—liquids or wet gases can affect accuracy.
- Contaminants: Dust or particles may impact the sensor over time.
- Temperature Sensitivity: Extreme changes in fluid or ambient temperature can influence readings.

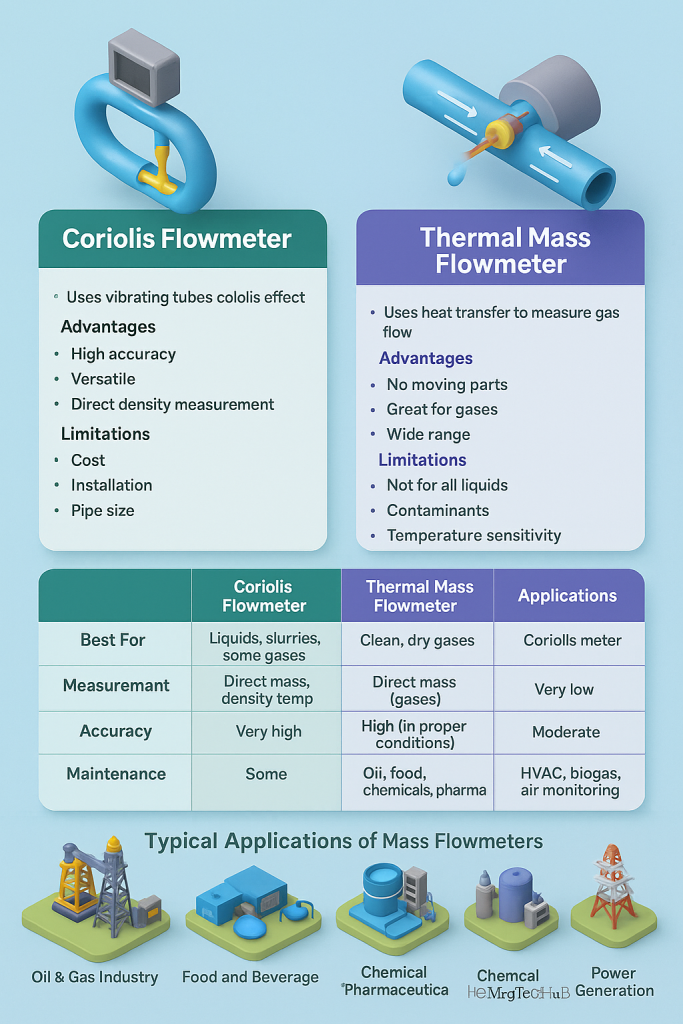

Comparing Coriolis and Thermal Mass Flowmeters
| Feature | Coriolis Flowmeter | Thermal Mass Flowmeter |
|---|---|---|
| Best For | Liquids, slurries, some gases | Clean, dry gases |
| Measurement | Direct mass, density, temp | Direct mass (gases) |
| Accuracy | Very high | High (in proper conditions) |
| Cost | Higher | Moderate |
| Maintenance | Some (due to moving parts) | Very low |
| Applications | Oil, food, chemicals, pharma | HVAC, biogas, air monitoring |
Typical Applications of Mass Flowmeters
1. Oil & Gas Industry
- Coriolis flowmeters are used to measure crude oil, refined products, and natural gas, ensuring accurate custody transfer and leak detection.
- Thermal mass flowmeters track flare gas emissions and monitor fuel gas in combustion processes.
2. Food and Beverage
- Coriolis meters guarantee precise filling and mixing for beverages, dairy, and syrup production, maintaining quality and consistency.
3. Water and Wastewater Treatment
- Mass flowmeters help in chemical dosing, sludge handling, and monitoring water flow, which are critical for process control and regulatory compliance.
4. Chemical and Pharmaceutical
- Coriolis flowmeters handle aggressive or viscous chemicals, and thermal meters measure gases in reactors or environmental monitoring systems.
5. Power Generation
- Monitoring fuel and air flows using mass flowmeters helps optimize efficiency in boilers and turbines.
Frequently Asked Questions (FAQ)
What is the main difference between a Coriolis flowmeter and a thermal mass flowmeter?
Coriolis flowmeters measure mass flow by detecting the twist in vibrating tubes, suitable for liquids and some gases. Thermal mass flowmeters use heat transfer to measure the mass flow of gases.
Are mass flowmeters suitable for both liquids and gases?
Coriolis flowmeters work with both, but thermal mass flowmeters are primarily designed for gases.
How accurate are mass flowmeters?
Coriolis flowmeters are among the most accurate industrial flow sensors, often within ±0.1% of the true mass flow. Thermal mass flowmeters are also accurate but best suited for clean, dry gases.
Can I use mass flowmeters for level measurement?
Mass flowmeters are primarily used for flow measurement, but they can indirectly assist in level measurement by monitoring inflow and outflow rates.
Which industries use mass flowmeters most?
Oil & gas, chemical, food & beverage, water treatment, and power generation are the main sectors that rely on mass flowmeter technology.
Flow and level measurement instruments like mass flowmeters play a vital role in industrial process control. Whether you choose a Coriolis flowmeter for its accuracy and versatility, or a thermal mass flowmeter for its simplicity with gases, understanding their principles and applications can help you select the best solution for your needs.
Have questions about flowmeter applications or need help choosing the right industrial flow sensors for your plant? Leave a comment below or get in touch—we’re here to help!
