Electromagnetic and Ultrasonic Flowmeters
Why Flow and Level Measurement Matters
In industrial operations, precise flow and level measurement is not just a technical requirement but a cornerstone of safe and efficient production. Whether it is dosing chlorine in a municipal water treatment facility, monitoring milk flow in a dairy plant, or tracking chilled water in an HVAC system, flowmeters provide the critical data that operators need to keep processes stable. Without reliable flow measurement, plants risk inconsistent product quality, excessive waste, equipment damage, or even regulatory violations. Among the many types of flowmeters available, Electromagnetic flowmeters and Ultrasonic flowmeters stand out as versatile, non-intrusive solutions that suit a wide variety of industries.

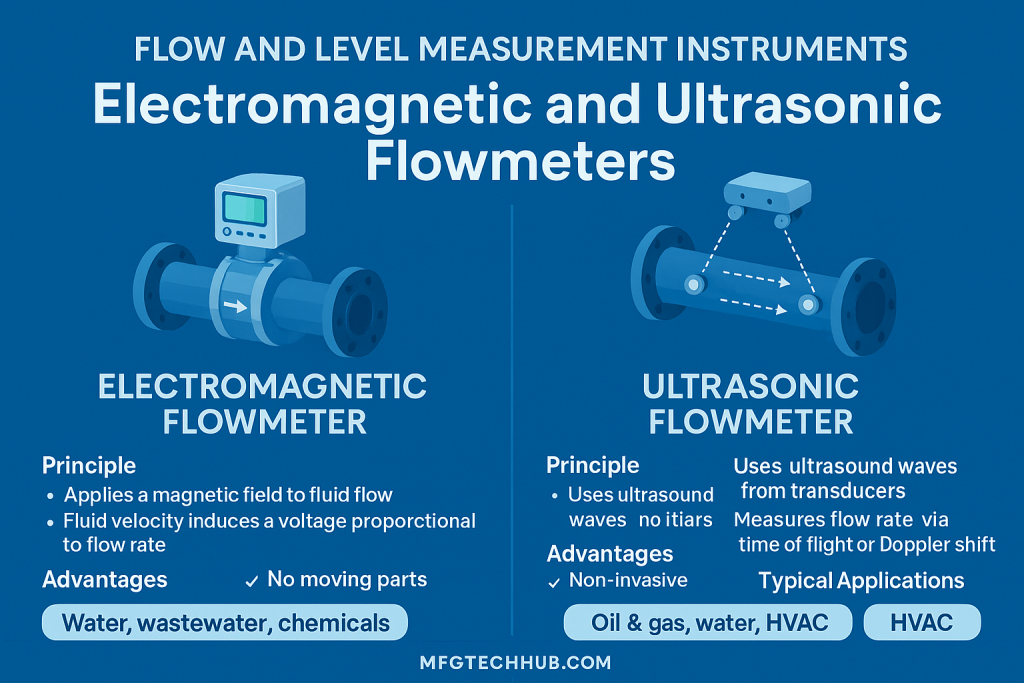

Side-by-side comparison of Electromagnetic and Ultrasonic flowmeters, including their working principles, benefits, and common industrial use cases.
What Are These Flowmeters?
Electromagnetic (Mag) flowmeters measure the flow of conductive liquids by applying Faraday’s law of electromagnetic induction. They contain no moving parts and create virtually no pressure drop, which makes them well-suited to applications involving slurries or corrosive liquids.
Ultrasonic flowmeters, on the other hand, use high-frequency sound waves to measure how fast a fluid is moving inside a pipe. These meters can be installed in-line or attached externally in clamp-on style, meaning the pipe does not even need to be cut. Depending on the ultrasonic method—transit-time or Doppler—they can measure both clean fluids and liquids with entrained solids or bubbles.
Electromagnetic (Mag) Flowmeters: Principles and Applications
How They Work
- A magnetic field is generated across the meter’s flow tube.
- As a conductive liquid passes through this magnetic field, it induces a voltage proportional to the flow velocity.
- Electrodes mounted in the tube wall detect this voltage, and electronics convert it into a volumetric flow rate.
Practical Example
In a water treatment plant, mag flowmeters are installed on chemical dosing lines to control the amount of coagulant added. Regardless of changes in water pressure or temperature, the mag meter maintains dosing accuracy, ensuring compliance with water quality standards.
Advantages
- No moving parts, reducing wear and extending service life.
- High accuracy for conductive liquids, typically better than ±0.5%.
- Negligible pressure drop, even at high flow rates.
- Can handle slurries, abrasive sludges, and corrosive fluids with the correct liner material.
Limitations
- Only works with fluids that have sufficient electrical conductivity.
- Not suitable for hydrocarbons, oils, or ultra-pure deionized water.
- Liner and electrode material selection must be matched carefully to the process medium.
Ultrasonic Flowmeters: Principles and Applications
Types and How They Work
Transit-Time Ultrasonic Flowmeters
- Two transducers alternately send and receive ultrasonic pulses with and against the flow direction.
- The difference in signal transit times is proportional to fluid velocity.
- Flow rate is calculated using the velocity and the pipe’s cross-sectional area.
Doppler Ultrasonic Flowmeters
- A transducer emits ultrasonic signals into the liquid stream.
- Suspended particles or bubbles reflect the signal, creating a frequency shift (the Doppler effect).
- This frequency shift is measured to calculate flow velocity and volumetric flow.
Practical Examples
- A dairy facility clamps ultrasonic sensors onto stainless steel pasteurizer lines to measure milk flow without interrupting production.
- A wastewater treatment plant uses Doppler ultrasonic meters to monitor sludge flows where bubbles and solids are present.
Advantages
- Clamp-on installation eliminates the need to cut into process piping.
- Works with both conductive and non-conductive liquids.
- Portable versions allow temporary measurement campaigns.
- Capable of measuring flow in very large diameter pipes.
Limitations
- Transit-time units require clean, relatively bubble-free liquids.
- Doppler units need suspended solids or entrained air to work properly.
- Accuracy can be affected by pipe wall thickness, transducer placement, and signal quality.
Comparison Table: Electromagnetic vs. Ultrasonic Flowmeters
| Feature | Electromagnetic (Mag) | Ultrasonic (Transit-Time / Doppler) |
|---|---|---|
| Fluid Type | Conductive liquids only | Clean liquids (Transit-Time); dirty/slurry with bubbles (Doppler) |
| Installation | In-line, wetted electrodes | Clamp-on or in-line, non-intrusive possible |
| Accuracy | High for conductive liquids | High for clean liquids; moderate for Doppler |
| Pressure Loss | Negligible | None for clamp-on designs |
| Maintenance | Low | Low, but transducer surface must be kept clean |
| Best Use Cases | Water, wastewater, chemicals, slurries | Energy audits, temporary installs, non-conductive fluids |
Typical Applications
1. Water and Wastewater
- Mag: accurate flow monitoring of raw water, sludge, and treated effluents.
- Ultrasonic: clamp-on meters for large mains and leak detection projects.
2. Food and Beverage
- Mag: syrup lines, clean-in-place (CIP) fluids, brewing mash.
- Ultrasonic: temporary flow checks during production changes or seasonal demand.
3. Chemical Industry
- Mag: acids, caustics, and corrosive brines where material compatibility is ensured.
- Ultrasonic: oils, solvents, and hydrocarbon products where conductivity is too low for mag meters.
4. HVAC and Energy
- Ultrasonic: monitoring chilled and hot water flows in energy efficiency projects.
- Mag: glycol loops in district heating and cooling networks.
Frequently Asked Questions (FAQ)
Do electromagnetic flowmeters work with all liquids?
No, they only measure liquids with sufficient electrical conductivity. Non-conductive fluids such as oils cannot be measured.
When should I use Transit-Time vs. Doppler ultrasonic meters?
Transit-Time is best for clean, bubble-free liquids, while Doppler is designed for liquids with suspended solids or entrained air.
Can flowmeters be installed without cutting pipes?
Yes. Clamp-on ultrasonic flowmeters attach to the outside of the pipe, making them ideal for retrofit or temporary applications.
Can flowmeters help with level measurement?
Indirectly, yes. By measuring inflow and outflow rates, operators can calculate tank levels using mass balance principles.
Conclusion
Electromagnetic and Ultrasonic flowmeters provide engineers with two highly effective options for liquid measurement. Mag meters excel in applications involving conductive liquids, offering accuracy and long-term stability with minimal maintenance. Ultrasonic meters provide unmatched flexibility, enabling non-intrusive measurement of both conductive and non-conductive fluids. By understanding their working principles, strengths, and limitations, industries can select the right flowmeter technology to improve efficiency, safeguard quality, and achieve compliance with regulatory standards. With proper installation and periodic verification, both technologies can deliver years of dependable service across water, food, chemical, energy, and environmental applications.
