Differential Pressure (DP) Flowmeters (Orifice, Venturi, Pitot Tubes)
Why Differential Pressure Flow Measurement Matters
In industrial process control, accurately measuring the flow of liquids, gases, and steam is essential for efficiency, product quality, and safety. Differential Pressure (DP) Flowmeters are among the most widely used technologies for this purpose. They are valued for their simplicity, durability, and ability to handle a wide range of fluids and operating conditions. Whether in oil refineries, power plants, or water treatment facilities, DP flowmeters provide reliable measurements that keep processes running smoothly and within regulatory limits.
What Are Differential Pressure (DP) Flowmeters?
DP flowmeters measure the flow rate by detecting the difference in pressure between two points in a fluid stream. This is based on Bernoulli’s principle, which states that as fluid velocity increases, pressure decreases. By placing a restriction in the flow path and measuring the pressure drop, the flow rate can be calculated.
Common DP flowmeter types include:
- Orifice Plate Flowmeters
- Venturi Tube Flowmeters
- Pitot Tube Flowmeters
Orifice Plate Flowmeters: Principles and Applications
How They Work
- A flat plate with a precisely sized hole (orifice) is installed in the pipe.
- Fluid accelerates as it passes through the orifice, creating a pressure drop.
- The pressure difference between upstream and downstream taps is measured and used to calculate flow rate.
Practical Example
In an oil refinery, orifice plates are used to measure crude oil flow during transfer operations, ensuring accurate billing and custody transfer.
Advantages
Simple design and low initial cost- Suitable for a wide range of fluids
- Easy to install and replace
Simple design and low initial costLimitations
- Permanent pressure loss due to flow restriction
- Not ideal for slurries or fluids with high solids content
- Requires regular inspection for wear and tear
Permanent pressure loss due to flow restrictionVenturi Tube Flowmeters: Principles and Applications
How They Work
- The Venturi tube has a narrowing section (throat) that increases fluid velocity and decreases pressure.
- Pressure sensors measure the difference between the inlet and throat sections.
- Flow rate is calculated using fluid dynamics equations.
Practical Example
In municipal water supply systems, Venturi tubes measure high-volume water flows with minimal energy loss.
Advantages
- Low permanent pressure loss compared to orifice plates
- Handles large flow volumes efficiently
- Suitable for dirty or corrosive fluids
Limitations
- Higher manufacturing cost
- Requires more installation space
- Heavier and less portable than other DP types
Pitot Tube Flowmeters: Principles and Applications
How They Work
- A small probe with pressure-sensing ports is inserted into the flow stream.
- The total (stagnation) pressure and static pressure are measured.
- The difference between these pressures gives the fluid velocity, which is converted to flow rate.
Practical Example
In HVAC systems, Pitot tubes measure airflow in ducts to balance and optimize ventilation.
Advantages
- Simple, compact design
- Low cost and minimal pressure loss
- Easy to install and remove for maintenance
Limitations
- Lower accuracy compared to orifice or Venturi meters
- Sensitive to flow profile and alignment errors
- Not suitable for very low flow rates

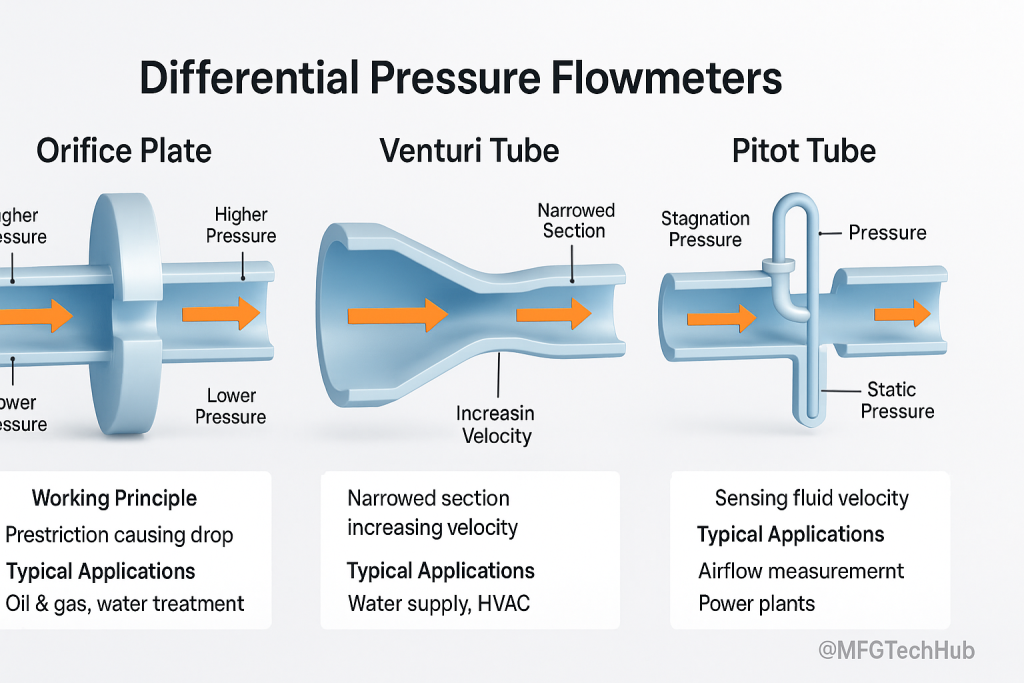

Comparison Table: Orifice vs. Venturi vs. Pitot Tube
| Feature | Orifice Plate | Venturi Tube | Pitot Tube |
|---|---|---|---|
| Cost | Low | High | Low |
| Accuracy | Moderate | High | Moderate |
| Permanent Pressure Loss | High | Low | Minimal |
| Best For | General-purpose liquids/gases | High-volume flows | Airflow and velocity measurement |
| Maintenance | Medium | Low | Low |
Typical Applications of DP Flowmeters
1. Oil & Gas Industry
- Orifice plates for custody transfer of crude oil
- Venturi tubes for measuring gas injection rates
- Pitot tubes for flare gas flow monitoring
2. Water and Wastewater Treatment
- Venturi tubes for high-volume raw water intake measurement
- Orifice plates for chemical dosing control
3. Power Generation
- Orifice plates for steam flow measurement in turbines
- Pitot tubes for monitoring combustion air flow
4. HVAC and Building Services
- Pitot tubes for balancing airflow in ducts
- Orifice plates for chilled water flow measurement
Frequently Asked Questions (FAQ)
Are DP flowmeters suitable for all fluids?
They work well for liquids, gases, and steam, but some designs may not suit abrasive or high-solid-content fluids.
Which DP flowmeter is most energy efficient?
Venturi tubes are more energy efficient due to lower permanent pressure loss.
Can DP flowmeters handle large pipelines?
Yes, especially Venturi tubes, which are designed for high-volume flows.
Do DP flowmeters require regular calibration?
Yes, periodic calibration ensures accuracy and compensates for wear or buildup.
Conclusion
Differential Pressure Flowmeters — including orifice plates, Venturi tubes, and Pitot tubes — remain a trusted choice for industries worldwide. They offer a balance of accuracy, reliability, and cost-effectiveness, making them suitable for everything from oil pipelines to HVAC ducts. By selecting the right DP flowmeter type and maintaining it properly, industries can ensure precise measurements, optimize processes, and improve operational efficiency.
Advanced Insights on DP Flow Measurement
While traditional applications of orifice plates, Venturi tubes, and Pitot tubes are well-established, modern industries are taking DP flow measurement further by integrating it with smart technologies. The following aspects highlight how DP flowmeters continue to evolve:
1. Integration with Digital Systems
- Smart Transmitters: Modern DP flowmeters are paired with intelligent transmitters that provide temperature and pressure compensation for higher accuracy.
- SCADA & MES Connectivity: Real-time flow data is directly fed into Manufacturing Execution Systems (MES) and SCADA for production monitoring and optimization.
- IIoT Applications: DP flowmeters connected through wireless protocols (LoRa, NB-IoT) provide remote visibility in oilfields, pipelines, and distributed water networks.
2. Calibration and Maintenance Best Practices
- Regular calibration is critical for long-term accuracy, especially in custody transfer and regulatory applications.
- Advanced calibration rigs now allow in-situ verification without process shutdowns.
- Predictive maintenance using vibration and pressure diagnostics helps extend the service life of DP flowmeters.
Example: A power plant integrates DP flowmeter calibration schedules with predictive maintenance algorithms, reducing downtime by 20%.
3. Case Study Applications
- Refineries: Orifice plates combined with smart transmitters are used in custody transfer of crude oil, ensuring accuracy within ±0.25%.
- Hydropower Plants: Venturi tubes are installed in penstocks to measure massive water flows with minimal energy loss.
- HVAC in Airports: Pitot tubes are embedded in duct systems to balance airflow across terminals, improving passenger comfort and energy efficiency.
4. Compliance and Standards
DP flowmeters must adhere to international measurement standards to ensure global consistency. Key standards include:
- ISO 5167: Governs the design and calibration of differential pressure flow measurement devices, including orifice plates, Venturi tubes, and nozzles.
- ASME MFC-3M: Standard for measurement of fluid flow in closed conduits using DP devices.
- AGA-3: American Gas Association standard for orifice metering of natural gas.
Adhering to these standards ensures measurement traceability, regulatory compliance, and accuracy in high-stakes applications such as gas custody transfer.
5. Future Trends in DP Flow Measurement
- Hybrid Flow Systems: DP devices combined with ultrasonic or Coriolis meters for multi-parameter monitoring.
- AI-Powered Diagnostics: Machine learning models predicting erosion of orifice plates or buildup in Venturi tubes.
- Digital Twin Simulation: Using virtual models to predict DP device performance under different process conditions before installation.
- Green Energy Applications: DP flowmeters are increasingly deployed in hydrogen pipelines and carbon capture plants where reliability and safety are paramount.
Extended FAQ
Which industries rely most on DP flowmeters today?
They are heavily used in oil & gas, chemical, water treatment, HVAC, food & beverage, and power generation. Their robustness makes them suitable for both continuous process industries and discrete manufacturing.
How do DP flowmeters compare with ultrasonic or Coriolis meters?
While ultrasonic and Coriolis meters provide higher accuracy and less maintenance, DP flowmeters remain cost-effective, easier to implement in large pipelines, and are backed by long-standing industry familiarity.
What is the biggest drawback of DP flowmeters?
The main drawback is permanent pressure loss, especially in orifice plate designs. However, modern Venturi and nozzle-based designs mitigate this limitation significantly.
Can DP flowmeters be used in renewable energy systems?
Yes. For instance, they are increasingly used in biogas plants, hydrogen production units, and geothermal systems to measure mass and energy flows safely and reliably.
Final Thoughts
Differential Pressure Flowmeters have stood the test of time for over a century. Despite the rise of alternative flow measurement technologies, their simplicity, cost-effectiveness, and adaptability ensure they remain a cornerstone of industrial measurement. By combining traditional designs with smart transmitters, IoT integration, and AI-driven diagnostics, DP flowmeters are evolving into future-ready instruments that will continue to support efficiency, safety, and sustainability in modern industries.
