DCS Project Process: A Comprehensive Guide

Introduction

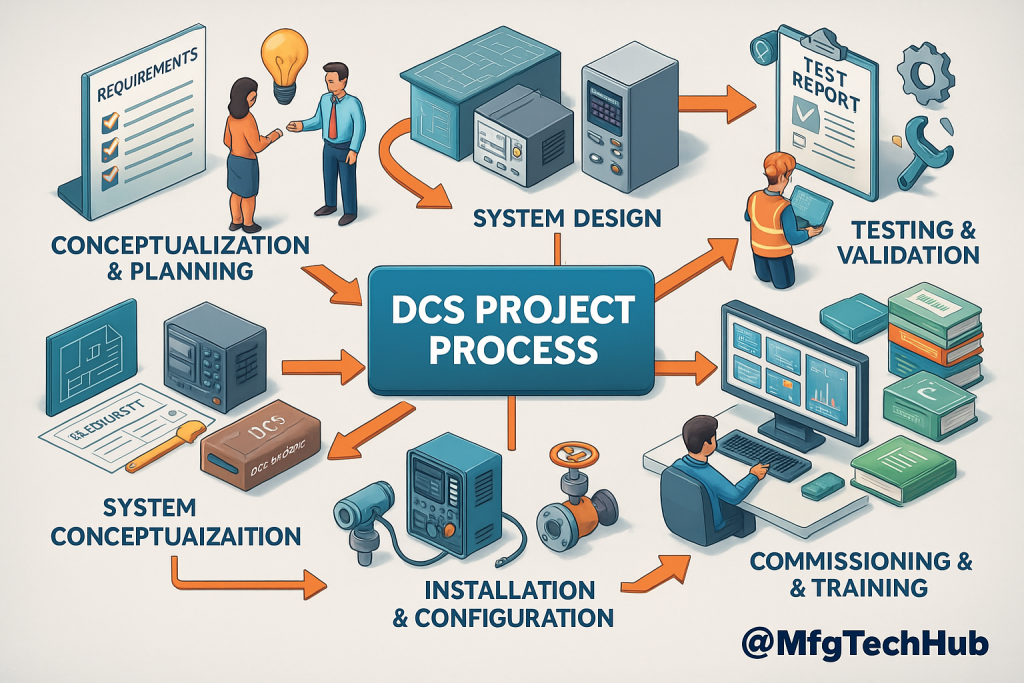

Implementing a Distributed Control System (DCS) is not simply about installing hardware and software—it is a long-term project that transforms how an industrial facility operates. A DCS project involves multiple phases, from early planning and requirement gathering to final commissioning and ongoing maintenance. Each step must be carefully managed to reduce risks, control costs, and ensure that the system supports both current operations and future expansion. This comprehensive guide explains the DCS project lifecycle in detail and highlights best practices, deliverables, and common challenges that organizations face along the way.

1. Project Conceptualization and Planning

The first and perhaps most critical phase of a DCS project is conceptualization and planning. At this stage, the organization must define what the project is meant to achieve and align the objectives with broader business and production strategies. Rushing through planning often leads to expensive mistakes later.

Objective

Define the project's scope, objectives, and requirements so that all stakeholders have a clear roadmap before execution begins.

Key Steps

1. Requirement Analysis: Gather detailed information about process requirements, safety needs, regulatory obligations, and integration goals. For example, a refinery may require tight control of temperature and pressure along with integration into its enterprise planning system.
2. Feasibility Study: Assess both technical and financial viability. This includes studying redundancy options, cybersecurity implications, and scalability for future growth.
3. Stakeholder Alignment: Collaborate with process engineers, IT departments, and senior management. Alignment ensures that engineering priorities do not conflict with business goals.

Deliverables

• A project charter that defines scope, objectives, and milestones.
• Preliminary budget with resource allocation and cost estimates.

2. System Design

Once planning is complete, attention shifts to designing the system. This stage transforms conceptual requirements into a structured technical blueprint. A well-designed DCS lays the foundation for reliable and efficient operations.

Objective

Develop a detailed design that fulfills process needs while remaining scalable, secure, and reliable for long-term use.

Key Steps

1. Architecture Design: Define the hierarchy of controllers, I/O modules, HMIs, and network topology.
2. Component Selection: Choose hardware and software platforms that align with performance and compatibility requirements. Popular systems include Emerson DeltaV, Honeywell Experion, and Siemens PCS 7.
3. Redundancy Planning: Design for resilience with redundant power supplies, controllers, and communication paths.
4. Control Logic Development: Draft strategies for PID loops, interlocks, alarms, and safety instrumented functions.

Deliverables

• Detailed design documents including P&IDs, block diagrams, and system architecture charts.
• Component specifications, vendor lists, and procurement schedules.

3. Installation and Configuration

This phase moves the project from paper to reality. It involves physically installing equipment and configuring the system for the intended application. Coordination between electricians, engineers, and IT teams is crucial.

Objective

Set up the physical infrastructure of the DCS and configure it to meet process requirements.

Key Steps

1. Hardware Installation: Mount controllers, install sensors, connect actuators, and establish networking infrastructure.
2. Software Configuration: Use vendor-specific tools to configure HMIs, alarms, and process logic.
3. Integration with Existing Systems: Ensure smooth data exchange with legacy SCADA, ERP, or MES platforms.

Deliverables

• Installed hardware and fully configured software modules.
• Verified integration with upstream and downstream systems.

4. Testing and Validation

No system should go live without rigorous testing. This stage ensures the DCS meets performance, safety, and reliability requirements under real-world conditions.

Objective

Validate that the DCS functions as designed across all operating scenarios.

Key Steps

1. Factory Acceptance Testing (FAT): Conducted at the vendor’s facility to verify core functionalities before shipment.
2. Site Acceptance Testing (SAT): Performed on-site to validate installation, integration, and full system behavior under plant conditions.
3. Simulation and Troubleshooting: Run simulations to predict behavior and resolve potential issues before live commissioning.

Deliverables

• FAT and SAT reports documenting test cases, outcomes, and resolutions.
• Validated system functionality and compliance certificates.

5. Commissioning and Training

Commissioning is the critical transition where the system moves from development into full-scale operations. At the same time, operator training ensures the workforce is equipped to use the system effectively.

Objective

Deploy the DCS for continuous operation and ensure users can operate and maintain it safely.

Key Steps

1. System Commissioning: Transition the DCS into live production. Engineers closely monitor the first operational runs for stability.
2. Operator Training: Provide structured training on monitoring tools, alarm handling, and troubleshooting.
3. Documentation: Deliver user manuals, maintenance procedures, and system diagrams.

Deliverables

• Fully operational and stable DCS system.
• A trained workforce capable of maintaining operational safety and efficiency.

6. Maintenance and Continuous Improvement

A DCS is not a one-time project but a living system that requires ongoing care. Continuous improvement ensures the system adapts to changing business and regulatory requirements.

Objective

Maintain system reliability, update features, and ensure alignment with evolving processes.

Key Steps

1. Routine Maintenance: Regular calibration of instruments, periodic hardware checks, and timely software patches.
2. Performance Monitoring: Use analytics and dashboards to track efficiency, downtime, and bottlenecks.
3. System Upgrades: Expand functionality by integrating IoT platforms, AI-based predictive controls, or cloud monitoring.

Deliverables

• Maintenance logs and service reports.
• Upgrade plans that support long-term competitiveness.

Common Challenges in DCS Projects

Even with meticulous planning, DCS projects face recurring challenges. Recognizing these risks early helps in creating mitigation strategies.

1. Scope Creep: Constantly changing requirements can inflate budgets and timelines. Solution: Establish a strict change management process.
2. Integration Issues: Legacy systems often lack compatibility. Solution: Use middleware or phase upgrades strategically.
3. Budget Constraints: DCS implementation involves high capital costs. Solution: Employ scalable designs and phased rollouts to spread costs.

Conclusion

Implementing a Distributed Control System is a journey that spans multiple phases: planning, design, installation, testing, commissioning, and ongoing improvement. Each phase plays a vital role in ensuring that the final system is reliable, efficient, and capable of supporting industrial operations for years to come. By following structured processes, engaging stakeholders, and addressing common challenges proactively, organizations can achieve successful DCS deployments that not only optimize today’s operations but also prepare for future technological advancements.
