DCS Components: Controllers and I/O Modules

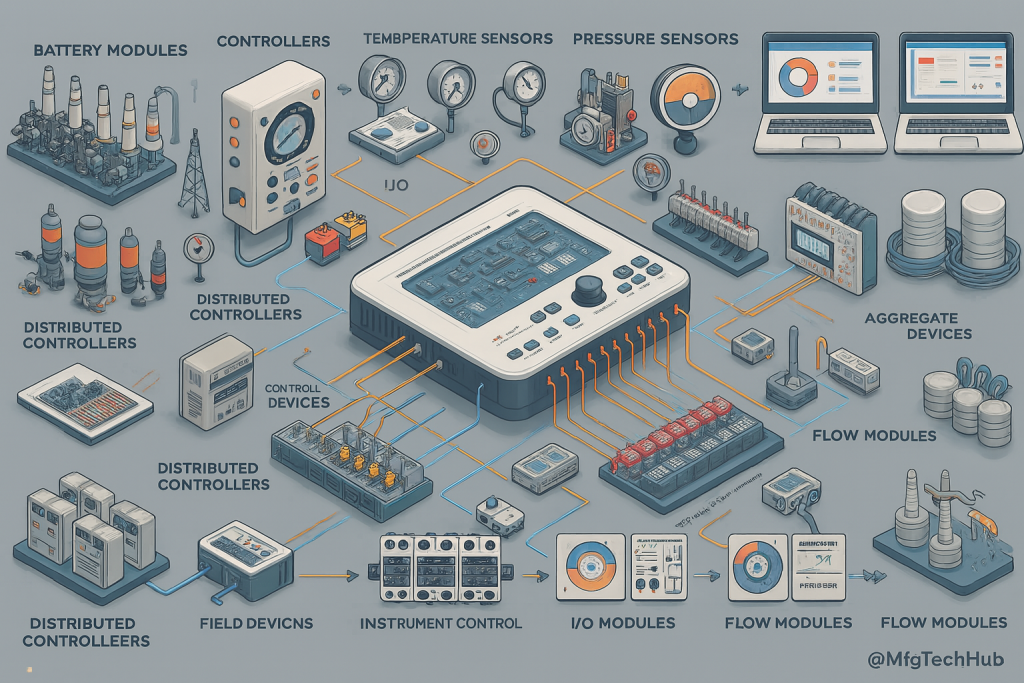

Controllers and Input/Output (I/O) modules are often described as the brain and nervous system of a Distributed Control System (DCS). Together, they provide the intelligence, connectivity, and responsiveness required for safe, efficient, and reliable automation in modern industries. Without controllers and I/O modules, a DCS would merely be a monitoring tool rather than an active decision-making system that can optimize operations in real-time.
1. What is a Controller in DCS?
A Controller in a DCS is the central computing unit responsible for turning raw process data into actionable control commands. Think of it as the decision-maker: it receives inputs from sensors, processes data through control logic, and sends outputs to actuators to keep industrial processes within defined setpoints.
- Executes control logic to regulate processes.
- Processes input data from field devices.
- Sends output commands to actuators to adjust process parameters.
Key Characteristics of DCS Controllers:
- Distributed Processing: Instead of relying on one central unit, controllers are placed throughout the system. This decentralized design makes DCS more resilient and allows localized decision-making.
- High-Speed Computation: Modern controllers are equipped with powerful processors capable of running complex algorithms like PID, fuzzy logic, and even AI-based optimizations.
- Redundant Architecture: Many controllers work in redundant pairs. If one fails, the backup immediately takes over, ensuring zero downtime.
Common Types of DCS Controllers:
- Process Controllers – Maintain process variables such as pressure in oil refineries, boiler temperatures in power plants, or mixing ratios in chemical facilities.
- Safety Controllers (SIS) – Provide an extra layer of protection by managing emergency shutdowns, gas leak detection, and critical safety interlocks.
- Edge Controllers – Perform computation closer to the source of data (e.g., a turbine or pipeline station), reducing latency and enabling faster responses.
Real-World Example: In a thermal power plant, process controllers continuously monitor steam pressure and water levels in boilers, while safety controllers trigger immediate shutdowns if unsafe thresholds are exceeded.
2. What are I/O Modules in DCS?
Input/Output (I/O) Modules act as the translators and messengers between field devices and controllers. Field devices like sensors and actuators generate or receive signals that are often analog or digital in nature. I/O modules convert these signals into data the controller can understand—and vice versa.
Functions of I/O Modules:
- Input Modules:
- Receive signals from field sensors such as thermocouples, pressure transmitters, and flow meters.
- Convert these signals into digital data for accurate processing.
- Output Modules:
- Send processed control commands to actuators such as valves, motors, and pumps.
- Convert digital signals back into analog outputs where needed.
Types of I/O Modules:
| Type | Function |
|---|---|
| Analog Input (AI) | Reads signals from analog sensors (e.g., temperature, pressure). |
| Analog Output (AO) | Sends proportional control signals to devices like control valves. |
| Digital Input (DI) | Reads binary on/off signals from switches and sensors. |
| Digital Output (DO) | Sends binary on/off signals to relays, alarms, and actuators. |
Example: In a bottling plant, digital inputs capture signals from sensors that detect bottle presence, while analog outputs adjust motor speeds to keep the conveyor belt running smoothly.
3. Role of Controllers and I/O Modules in DCS
The collaboration between controllers and I/O modules forms the backbone of industrial automation. Here’s how the workflow unfolds:
Step 1: Data Acquisition
- Sensors (temperature, pressure, vibration, etc.) send raw process signals to input modules.
- The input modules digitize and forward this information to the controller.
Step 2: Control Logic Execution
- The controller evaluates the data using algorithms such as PID control or advanced model predictive control.
- It compares process values with setpoints to determine corrective actions.
Step 3: Command Execution
- The controller sends signals to output modules.
- Output modules activate actuators, e.g., adjusting valve positions or motor speeds.
Step 4: Communication
- Controllers and I/O modules share data with central HMIs (Human Machine Interfaces).
- Operators visualize live trends, acknowledge alarms, and make adjustments remotely.
Practical Example: In an oil pipeline, sensors detect pressure drops. Input modules forward this to controllers, which immediately command output modules to close valves, preventing leaks or accidents.
4. Advantages of Controllers and I/O Modules in DCS
| Advantage | Description |
|---|---|
| Scalability | Plants can expand capacity simply by adding new I/O modules without redesigning the entire system. |
| Localized Control | Distributed controllers reduce load on central servers and ensure faster responses. |
| Flexibility | Easily reconfigured to match industry-specific requirements, from chemical mixing to pharmaceutical batch control. |
| Reliability | Redundant controllers and I/O modules provide fault tolerance, minimizing downtime. |
| Real-Time Processing | Enables immediate corrective action, which is vital in high-risk industries like oil & gas or nuclear power. |
5. Applications of Controllers and I/O Modules in DCS
Power Plants
- Monitor turbine speed, boiler temperatures, and emissions.
- Automatically balance load distribution during peak demand.
Oil & Gas
- Manage pipeline pressures and crude oil refining processes.
- Oversee offshore drilling operations remotely.
Pharmaceuticals
- Maintain precise environmental conditions for cleanrooms.
- Automate batch recipe execution for consistent drug quality.
Food & Beverage
- Control pasteurization temperatures for dairy processing.
- Automate bottling, packaging, and quality checks.
6. Challenges in Implementing Controllers and I/O Modules
| Challenge | Solution |
|---|---|
| Integration with Legacy Systems | Adopt compatible communication protocols like Modbus, Profibus, or OPC UA to bridge old and new systems. |
| Signal Interference | Deploy proper shielding, grounding, and robust cabling standards to reduce noise. |
| Latency in Data Processing | Invest in high-performance controllers capable of running advanced algorithms. |
| Environmental Conditions | Use rugged, industrial-grade components resistant to dust, heat, and vibration. |
Conclusion: Controllers and I/O modules are not just components; they are the lifelines of Distributed Control Systems. By bridging sensors, actuators, and operator stations, they ensure continuous, scalable, and intelligent automation. As industries transition to Industry 4.0, these elements are evolving to support IoT integration, edge computing, and AI-driven decision-making, making them even more critical for future-ready operations.
